LT1301 is a premium two-component polyurethane system formulated with polyether polyol, polyester polyol, foam stabilizer, catalyst, blowing agent, and flame retardant. Combined with polymeric MDI, it delivers superior insulation performance, excellent processability, and long-term durability.
Isocyanate Component
Isocyanate: Polymeric MDI
Applications & Key Features

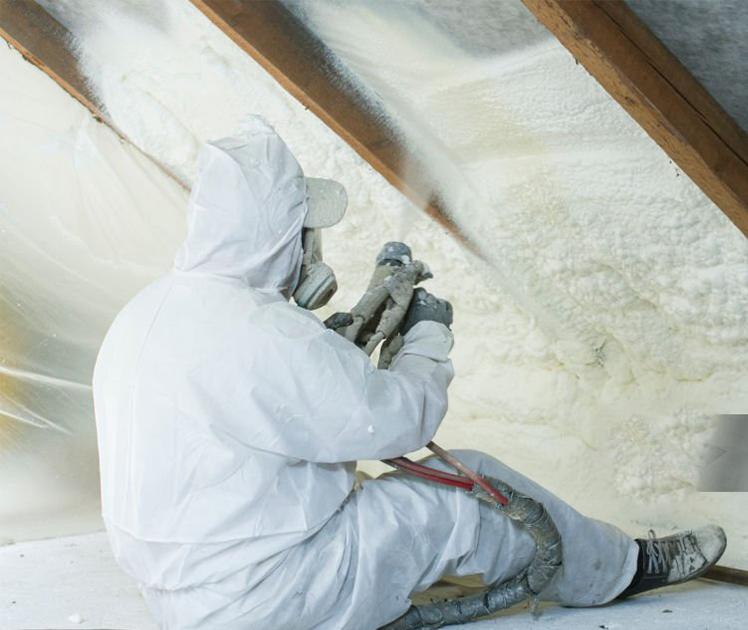

LT1301 is specially formulated for spray insulation applications on the surfaces of cold storage facilities, grain warehouses, fruit and vegetable storage rooms, chemical storage tanks, refrigerated truck compartments, and reefer containers.
It delivers rapid foaming, seamless coverage, smooth and uniform surface formation, and exceptional thermal insulation performance. Designed for high efficiency and consistent quality, LT1301 enhances productivity while maintaining reliable insulation results.
Compatible with a wide range of polyurethane spray equipment, it provides an ideal solution for industrial and commercial insulation projects requiring durability, energy efficiency, and superior application performance.
Control Tests
The main testing parameters include reaction characteristics such as cream time and fiber time, and the core density of the free-rise foam.
Test Method: 120 g of total material at 25°C is poured into a 500 ml plastic cup to observe reaction behavior.
| Parameter | Value |
| Agitator Speed (rpm) | 1000–2000 |
| Agitator Diameter (mm) | 50 |
| Mixing Time (s) | 2–6 |
|
Notes: After mixing, pour the mixed ingredients into a new cup. |
Reaction Results
| Test Item | Reference Range | Unit | Test Result |
| Cream Time | 2–6 | s | 3 |
| Fiber Time | 6–12 | s | 7 |
| Tack-Free Time | 7–14 | s | 8 |
| Free-Rise Density | 30–40 | kg/m³ | 31.8 |
Notes: Test temperature: 25°C, and mixing ratio P: I = 100:100 (P= LT1301, I = Polymeric MDI)
Typical Foam Properties
| Property | Typical Value |
| Pouring Density | 35–50 kg/m³ |
| Initial Thermal Conductivity | ≤ 0.024 W/m·K |
| Closed-Cell Content | ≥ 95% |
| Dimensional Stability | ≤ 1% |
Laboratory Test Data
| Test Item | Polyether Polyol | Isocyanate | Standard |
| Density (25°C) | 1.10± 0.05 g/cm³ | 1.24 ± 0.05 g/cm³ | GB/T 15223-2008 |
| Viscosity (25°C) | 500 ± 50 cps | 210 ± 40 cps | GB/T 12008.7-2010 |
Packaging & Storage
| Component | Packaging | Storage Temp | Shelf Life |
| Polyether Polyol | 220 kg / drum | 15–35°C | 3 months |
| Polymeric MDI | 250 kg / drum | 15–35°C | 12 months |
Both components are supplied separately in metal drums. Store in sealed metal drums in a cool, dry, and ventilated area. Avoid direct sunlight or moisture exposure.
Processing Requirements
| Parameter | Specification |
| Raw Material Temperature | 20–35°C |
| Demolding Time | Depends on product thickness |
| Machine Type | High-Pressure Polyurethane Spray Machine |
