LT2202 Polyether Polyol

Thermal Insulation Spraying Applications

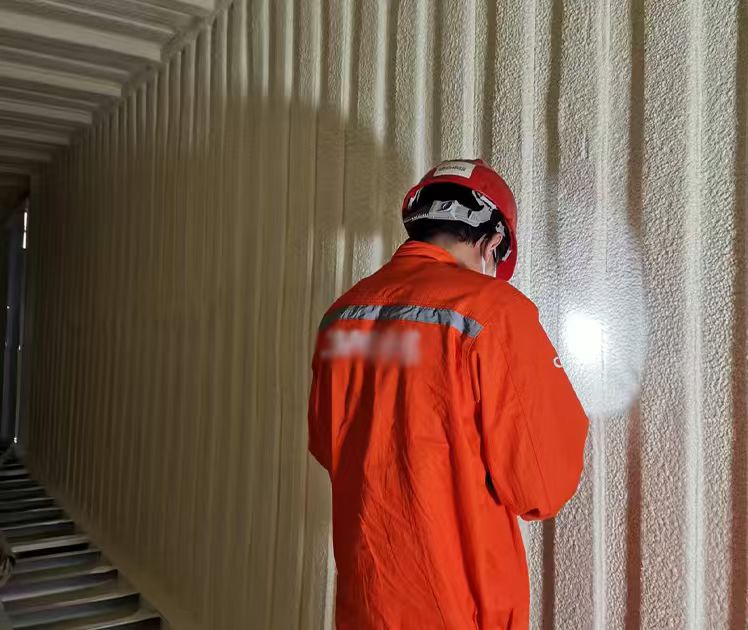

Cold storage rooms, grain silos, fruit and vegetable warehouses, chemical storage tanks, refrigerated trucks, and containers (roofs, floors and walls)

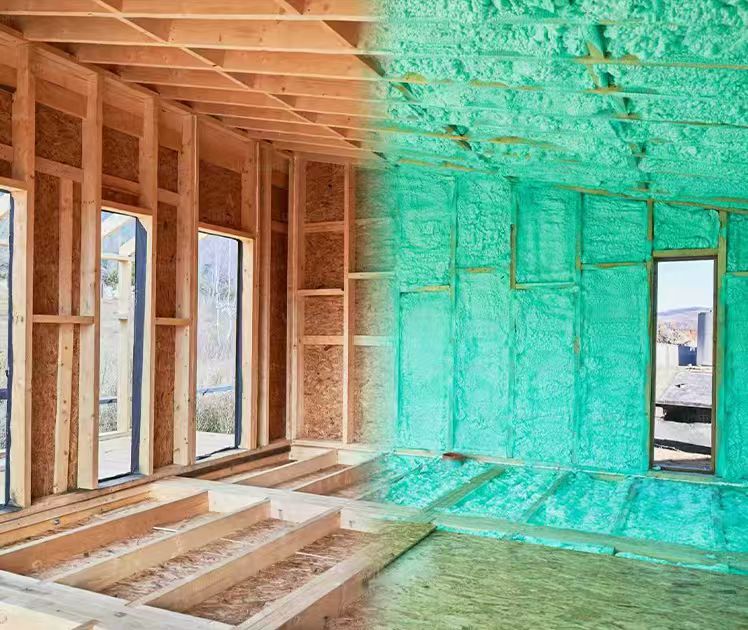

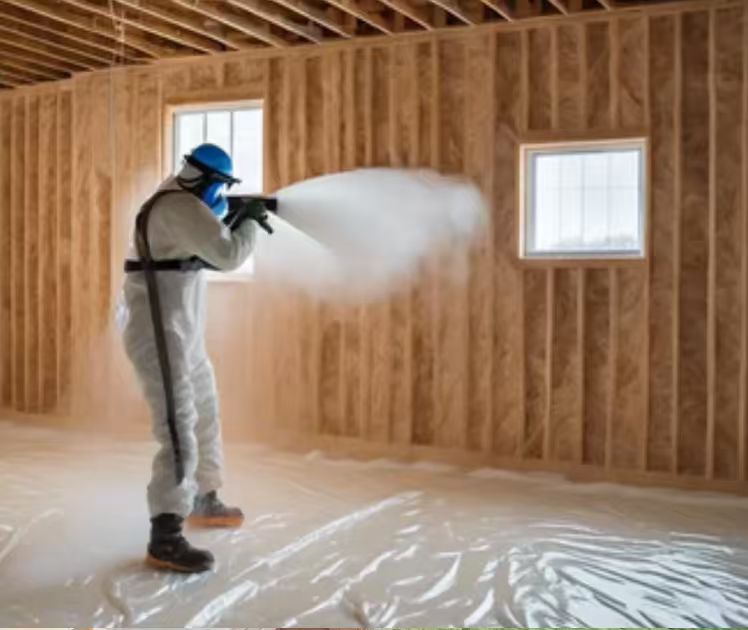

Residential and commercial insulation projects such as Villas, wine cellars, buildings, and KTV soundproof rooms

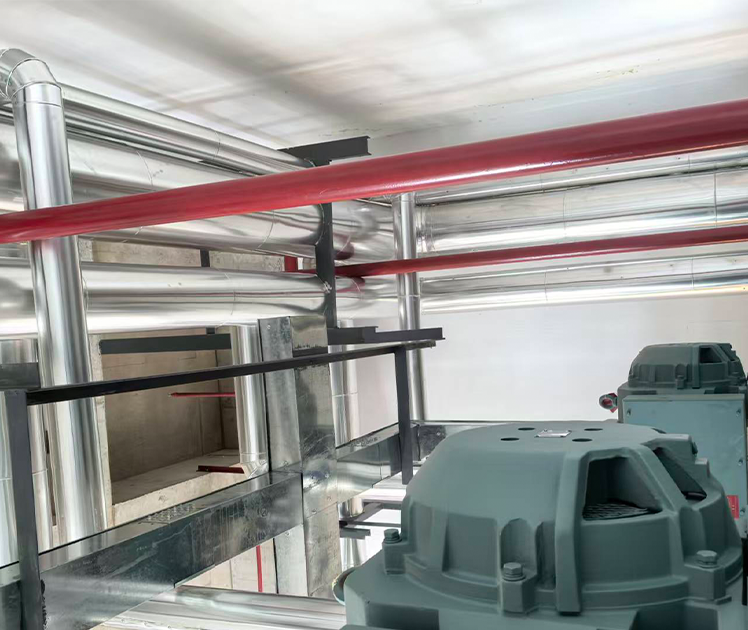

Cold storage machine rooms, refrigeration pipelines, storage tanks, and low-temperature pools
Underground thermal energy storage pools and chilled/hot water tanks
Roof insulation in livestock facilities such as chicken and duck houses and etc

LT2202 is a premium two-component polyurethane system formulated with polyether polyol, polyester polyol, foam stabilizer, catalyst, blowing agent, and flame retardant. Combined with polymeric MDI, it delivers superior insulation performance, excellent processability, and long-term durability.

Isocyanate Component
Isocyanate: Polymeric MDI

Applications & Key Features

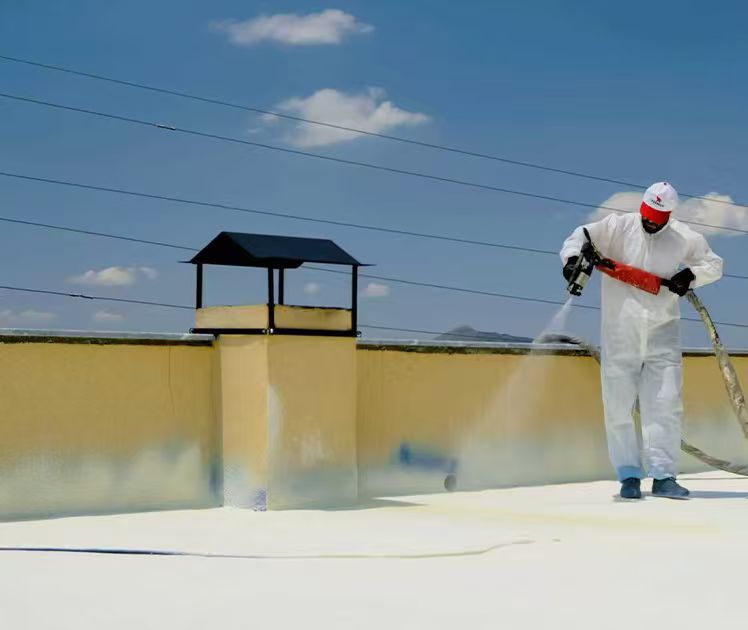

LT2202 is specially formulated for spray application on poultry and duck house ceilings.

Compliant with the latest European and American environmental standards, it offers lightweight properties, cost effective, short construction cycles, and is fully eco-friendly.

Designed for efficient and reliable application, LT2202 ensures durable coverage, ease of use, and environmentally safe performance.

Control Tests

The main testing parameters include reaction characteristics such as cream time and fiber time, and the core density of the free-rise foam.

Test Method: 120 g of total material at 25°C is poured into a 500 ml plastic cup to observe reaction behavior.

Parameter	Value
Agitator Speed (rpm)	1000–2000
Agitator Diameter (mm)	50
Mixing Time (s)	2–6
Notes: After mixing, pour the mixed ingredients into a new cup.

Reaction Results

Test Item	Reference Range	Unit	Test Result
Cream Time	5–15	s	8
Fiber Time	20–40	s	30
Tack-Free Time	30–50	s	34
Free-Rise Density	12–18	kg/m³	10

Notes: Test temperature: 25°C, and mixing ratio P: I = 100:100 (P= LT2202, I = Polymeric MDI)

Typical Foam Properties

Property	Typical Value
Pouring Density	12–27 kg/m³
Initial Thermal Conductivity	≤ 0.03 W/m·K
Closed-Cell Content	≥ 85%
Dimensional Stability	≤ 1%

Laboratory Test Data

Test Item	Polyether Polyol	Isocyanate	Standard
Density (25°C)	1.04 ± 0.05 g/cm³	1.24 ± 0.05 g/cm³	GB/T 15223-2008
Viscosity (25°C)	650 ± 50 cps	210 ± 40 cps	GB/T 12008.7-2010

Packaging & Storage

Component	Packaging	Storage Temp	Shelf Life
Polyether Polyol	220 kg / drum	15–35°C	3 months
Polymeric MDI	250 kg / drum	15–35°C	12 months

Both components are supplied separately in metal drums. Store in sealed metal drums in a cool, dry, and ventilated area. Avoid direct sunlight or moisture exposure.

Processing Requirements

Parameter	Specification
Raw Material Temperature	20–35°C
Demolding Time	Depends on product thickness

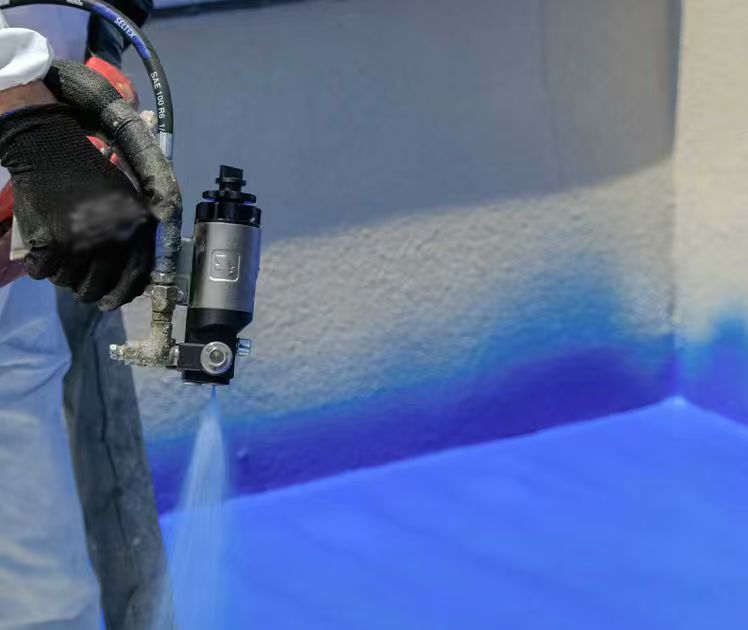

Machine Type	High-Pressure PU Spray Equipment
