LT1601 Polyether Polyol

LT1601 – Polyether Polyol

LT1601 is a premium two-component polyurethane system formulated with polyether polyol, polyester polyol, foam stabilizer, catalyst, blowing agent, and flame retardant. Combined with polymeric MDI, it delivers superior insulation performance, excellent processability, and long-term durability.

Isocyanate Component
Isocyanate: Polymeric MDI

Applications & Key Features

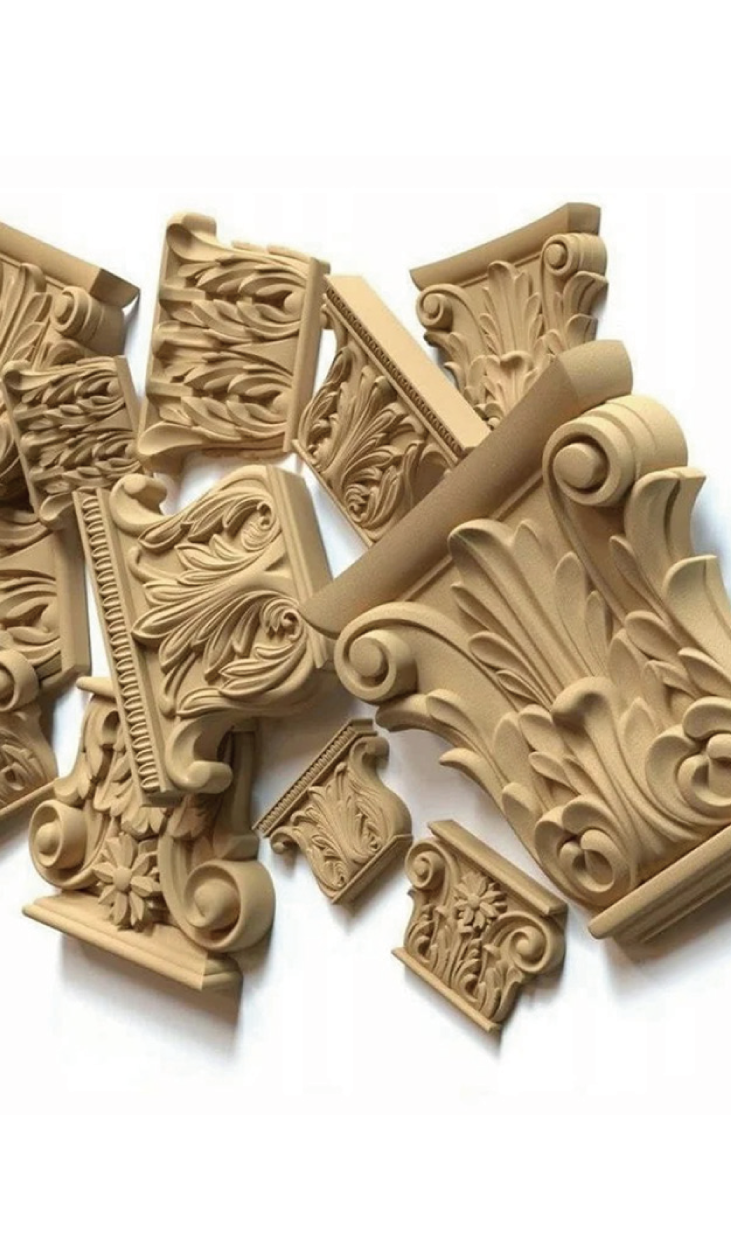

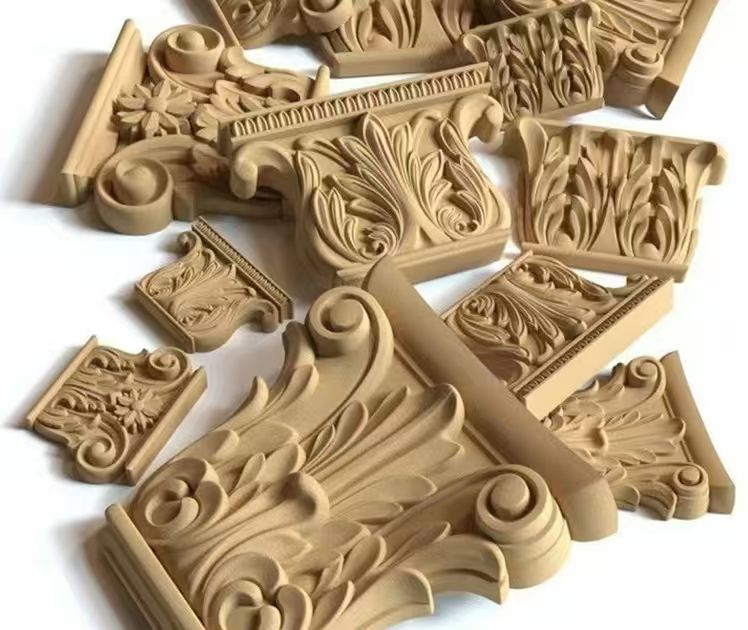

LT1601 is specially formulated for the production of lightweight decorative components, including moldings, column capitals, and light panels.

Compliant with current European and American environmental standards, it provides excellent flowability, low density, high strength, fine and uniform foam structure, bubble-free performance, and superior adhesion to surface materials.

Designed for efficient and reliable production, LT1601 ensures consistent quality, durability, and excellent aesthetic finish.

Control Tests

The main testing parameters include reaction characteristics such as cream time and fiber time, and the core density of the free-rise foam.

Test Method: 120 g of total material at 25°C is poured into a 500 ml plastic cup to observe reaction behavior.

Parameter	Value
Agitator Speed (rpm)	1000–2000
Agitator Diameter (mm)	50
Mixing Time (s)	6–10
Notes: After mixing, pour the mixed ingredients into a new cup.

Reaction Results

Test Item	Reference Range	Unit	Test Result
Cream Time	12–20	s	16
Fiber Time	70–100	s	80
Tack-Free Time	85–130	s	105
Free-Rise Density	45–80	kg/m³	65.8

Notes: Test temperature: 25°C, and mixing ratio P: I = 100:110 (P= LT1601, I = Polymeric MDI)

Typical Foam Properties

Property	Typical Value
Pouring Density	150–400 kg/m³
Initial Thermal Conductivity	≤ 0.024 W/m·K
Closed-Cell Content	≥ 95%
Dimensional Stability	≤ 1%

Laboratory Test Data

Test Item	Polyether Polyol	Isocyanate	Standard
Density (25°C)	1.04 ± 0.05 g/cm³	1.24 ± 0.05 g/cm³	GB/T 15223-2008
Viscosity (25°C)	700 ± 50 cps	210 ± 40 cps	GB/T 12008.7-2010

Packaging & Storage

Component	Packaging	Storage Temp	Shelf Life
Polyether Polyol	220 kg / drum	15–35°C	3 months
Polymeric MDI	250 kg / drum	15–35°C	12 months

Both components are supplied separately in metal drums. Store in sealed metal drums in a cool, dry, and ventilated area. Avoid direct sunlight or moisture exposure.

Processing Requirements

Parameter	Specification
Raw Material Temperature	20–35°C
Demolding Time	Depends on product thickness
Machine Type	High / Low-Pressure Foaming Equipment
