LT1201 Polyether Polyol

LT1201 is a premium two-component polyurethane system formulated with polyether polyol, polyester polyol, foam stabilizer, catalyst, blowing agent, and flame retardant. Combined with polymeric MDI, it delivers superior insulation performance, excellent processability, and long-term durability.

Isocyanate Component
Isocyanate: Polymeric MDI

Applications & Key Features
LT1201 is specifically developed for high-pressure foaming applications, ideal for manufacturing:

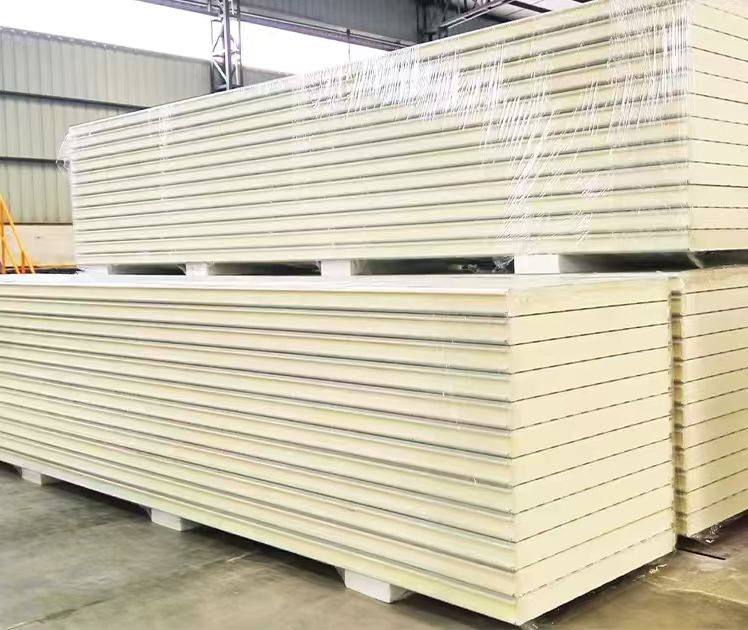

• Cool room and cold storage panels
• Truck and container body insulation boards
• Large box-type foam blocks
• Building partition and modular housing insulation

Engineered for large-size and complex panel production, it offers outstanding flowability, lightweight performance, high structural strength, and excellent thermal insulation efficiency. With its superior adhesion and stable foam structure, the product ensures long-lasting durability and energy savings.

Widely applied in building insulation, prefabricated housing, cold storage facilities, refrigerated trucks, equipment enclosures, and low-temperature laboratories, it provides a reliable solution for projects that demand high performance and exceptional insulation results.

Control Tests

The main testing parameters include reaction characteristics such as cream time and fiber time, and the core density of the free-rise foam.

Test Method: 120 g of total material at 25°C is poured into a 500 ml plastic cup to observe reaction behavior.

Parameter	Value
Agitator Speed (rpm)	1000–2000
Agitator Diameter (mm)	50
Mixing Time (s)	6–10
Notes: After mixing, pour the mixed ingredients into a new cup.

Reaction Results

Test Item	Reference Range	Unit	Test Result
Cream Time	10–30	s	23
Fiber Time	80–150	s	120
Tack-Free Time	110–200	s	145
Free-Rise Density	22–30	kg/m³	25.6

Notes: Test temperature: 25°C, and mixing ratio P: I = 100:115 (P= LT1201, I = Polymeric MDI)

Typical Foam Properties

Property	Typical Value
Pouring Density	35–50 kg/m³
Initial Thermal Conductivity	≤ 0.024 W/m·K
Closed-Cell Content	≥ 95%
Dimensional Stability	≤ 1%

Laboratory Test Data

Test Item	Polyether Polyol	Isocyanate	Standard
Density (25°C)	1.00 ± 0.05 g/cm³	1.24 ± 0.05 g/cm³	GB/T 15223-2008
Viscosity (25°C)	500 ± 50 cps	210 ± 40 cps	GB/T 12008.7-2010

Packaging & Storage

Component	Packaging	Storage Temp	Shelf Life
Polyether Polyol	200 kg / drum	15–35°C	3 months
Polymeric MDI	250 kg / drum	15–35°C	12 months

Both components are supplied separately in metal drums. Store in sealed metal drums in a cool, dry, and ventilated area. Avoid direct sunlight or moisture exposure.

Processing Requirements

Parameter	Specification
Raw Material Temperature	20–35°C
Demolding Time	Depends on product thickness
Machine Type	High-pressure foaming equipment
